►Audi A5 ►Infotainment ◀Multi Media Interface
The Multi Media Interface (MMI) combines different communication, navigation* and entertainment systems in your Audi. You can operate your MMI system via the MMI control console, the multi-function steering wheel or the speech dialogue system*.

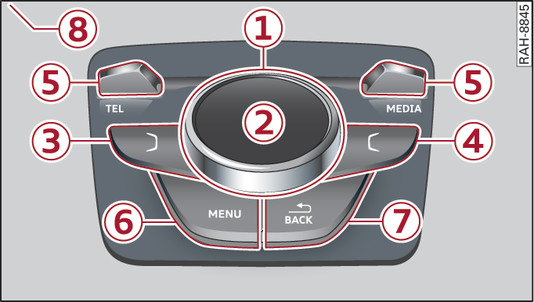

Fig. 188 Applies to: vehicles with automatic gearbox MMI control console with integrated shortcut buttons.
Fig. 188
Applies to: vehicles with automatic gearbox
MMI control console with integrated shortcut buttons.

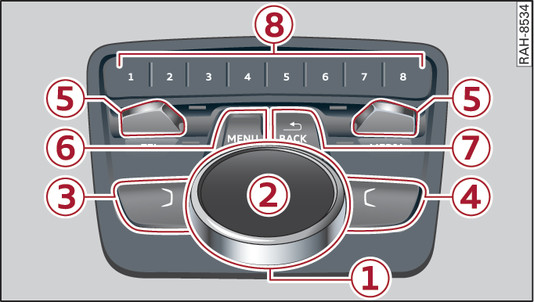

Fig. 189 Applies to: vehicles with manual gearbox MMI control console with shortcut buttons fitted separately on centre console
Fig. 189
Applies to: vehicles with manual gearbox
MMI control console with shortcut buttons fitted separately on centre console

Overview of MMI control console

-1-Rotary pushbutton; may include joystick function*
“Selecting and confirming a function”►
“Rotary pushbutton with joystick function”►
-2-MMI touch pad* ►
-3-Left control button ►
-4-Right control button ►
-5-Buttons for calling up menus directly ►
-6-MENU button ►
-7-BACK button ►
-8-Shortcut buttons ►
Note
The shortcut buttons -8- Fig. 189► for the MMI control console (manual gearbox) are located on the centre console.
