Applies to: vehicles with Audi tablet

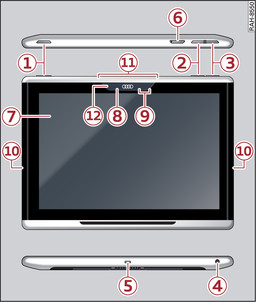

- Fig. 267 Overview of Audi tablet
Connections and buttons
| -1- | On/off button ► |
| -2- | Volume button (quieter/mute) ► |
| -3- | Volume button (louder) ► |
| -4- | Headphone connection (3.5 mm jack socket) ► |
| -5- | Micro USB port |
| -6- | Micro SD card reader ► |
| -7- | Audi tablet display |
| -8- | Status LED |
| -9- | NFC zone ► |
| -10- | Loudspeakers |
| -11- | Microphone |
| -12- | Camera |
