►Audi A5 ►Service and care ►Checking and top... ◀Filling the tank
The tank flap can be released manually if the central locking system should fail to operate.

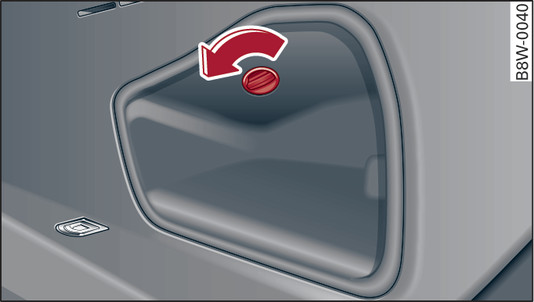

Fig. 325 Luggage compartment: Opening side trim
Fig. 325 Luggage compartment: Opening side trim

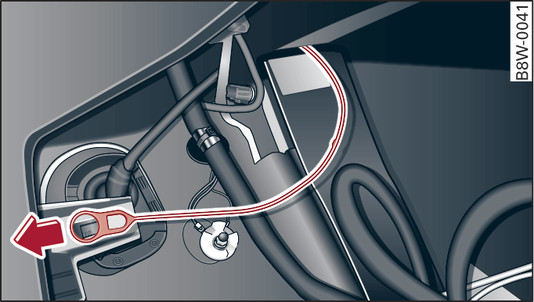

Fig. 326 Luggage compartment: Releasing tank flap manually
Fig. 326 Luggage compartment: Releasing tank flap manually
The manual release mechanism is located behind the side trim on the right of the luggage compartment.
Open the cover in the side trim Fig. 325►.
Release the ring Fig. 326► from its holder and carefully pull the ring ►. The tank flap is then released.
Press the left side of the tank flap to open it Fig. ►.
CAUTION
Stop pulling the ring when you feel resistance (the release mechanism is not audible). Otherwise, you could damage the manual release mechanism.
