Audi A4 Setting off Doors and windows Central locking syste...
If the central locking system fails to work, the doors must be locked/unlocked separately.

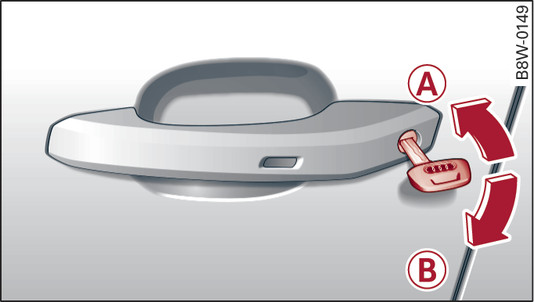

Fig. 24 Driver s door lock
Fig. 24 Driver s door lock

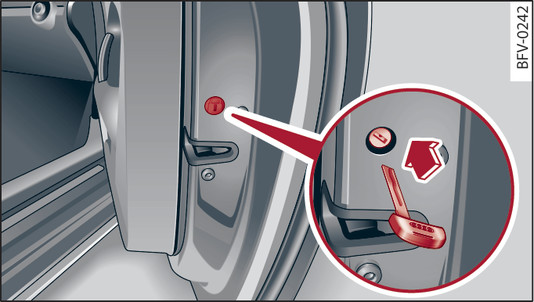

Fig. 25 Door: Locking the door manually
Fig. 25 Door: Locking the door manually
(Applies to vehicles with anti-theft alarm system: ) Switch on the ignition or press the button on the remote control key after opening the driver s door. Otherwise the alarm will be triggered.
Locking and unlocking the driver s door with the emergency key
Take out the emergency key link.
To unlock the driver s door, turn the key to the unlock position -A- Fig. 24.
To lock the driver s door, select transmission position P (automatic gearbox) and turn the key to the lock position -B- once .
Locking the front passenger s door and rear doors with the emergency key
The mechanical locking device is located on the end face of the front passenger s door and the rear doors. It is only visible when the door is open.
Take out the emergency key link.
Pull the cap out of the opening Fig. 25.
Insert the key in the slot inside and turn it as far as the stop to the right (if the door is on the right side) or to the left (if the door is on the left side).
WARNING
Applies to: vehicles with anti-theft alarm system
Do not leave anyone (especially children) in the car if it is locked from the outside and the safelock mechanism* is activated: the doors and windows cannot then be opened from the inside link. Locked doors could delay assistance in an emergency, potentially putting lives at risk.
