Applies to: vehicles with navigation system

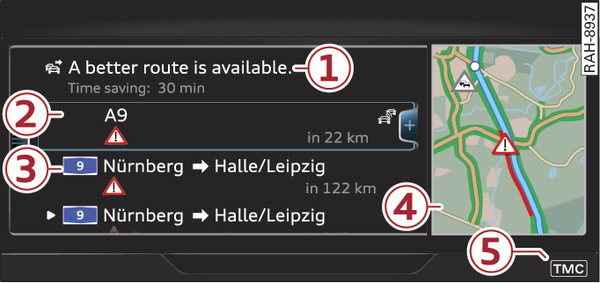

- Fig. 229 Example: Overview of traffic information
Press the NAV/MAP button repeatedly until the map is displayed Fig. ►.
Select: left control button > Traffic messages.
The following information may be displayed in the traffic information overview Fig. 229►, depending on the equipment installed in your vehicle:
| -1- | If your MMI has calculated a better route for the current route guidance, a corresponding message -1- Fig. 229► is shown. Further information can be found on link►. |
| -2- | When route guidance is active, traffic obstructions and hazard alerts* link► relevant for your route are shown in the top section of the list in order of the distance from your current location. |
| -3- | The traffic messages are sorted according to road name. If there are several traffic messages for the same road, an arrow is displayed next to the road name in the corresponding line ( ). Select an confirm the corresponding line to have all traffic information displayed. |
| -4- | The currently selected traffic message will also be shown as a map preview* on the infotainment display. |
| -5- | Reception of traffic information (TMC or ONLINE) is also indicated in the status line of the infotainment display. |
To show a traffic message on the map: Select a traffic message > right control button > Show on map.
To display the next piece of traffic information on the map: Press the rotary pushbutton.
The following coloured markings indicate the traffic flow along your planned route:
Green: no obstructions
Yellow: congested traffic
Red: traffic jam
Hatched markings show the stretch of road affected by the traffic obstruction.
Coloured warning symbols: There is a traffic obstruction ahead or there are local hazard alerts* for your route.
All traffic jams or other obstructions are marked with a coloured warning symbol on the map when route guidance is not active.
Greyed out warning symbols: Traffic obstructions that are not relevant for your route.
Warning symbols with
: Traffic obstructions that you have avoided.
: Traffic obstructions that you have avoided.
You can adjust the settings for the display of the coloured markings, warning symbols etc. in the Map content menu link►.
Note
Urgent traffic information, such as a car travelling in the wrong direction on the motorway, is displayed automatically. To hide the traffic information, press the BACK button or the rotary pushbutton.
