►Audi A4 ►Service and care ►Checking and top... ◀Filling the tank
The tank flap can be released manually if the central locking system should fail to operate.

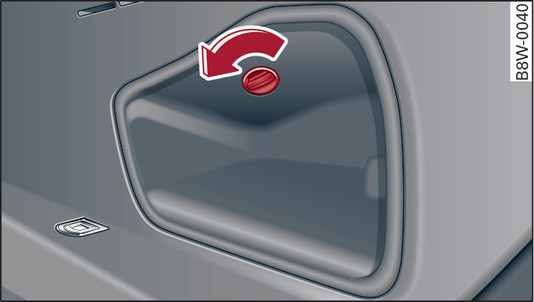

Fig. 290 Right-hand side trim in luggage compartment: Opening trim
Fig. 290 Right-hand side trim in luggage compartment: Opening trim

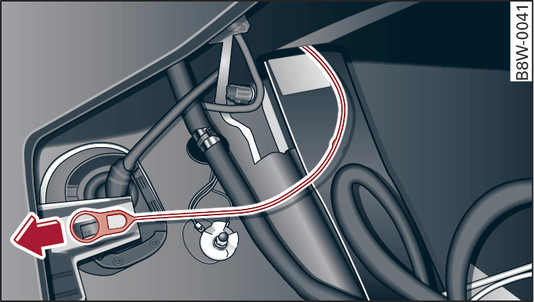

Fig. 291 Luggage compartment: Releasing tank flap manually
Fig. 291 Luggage compartment: Releasing tank flap manually
The manual release mechanism is located behind the side trim on the right of the luggage compartment.
Open the cover in the side trim Fig. 290►.
Release the ring from the holder and carefully pull the ring Fig. 291► ►. The tank flap is then released.
Press the left side of the tank flap to open it Fig. ►.
CAUTION
Stop pulling the ring when you feel resistance (the release mechanism is not audible). Otherwise, you could damage the manual release mechanism.
