Main components for checking and refilling
-

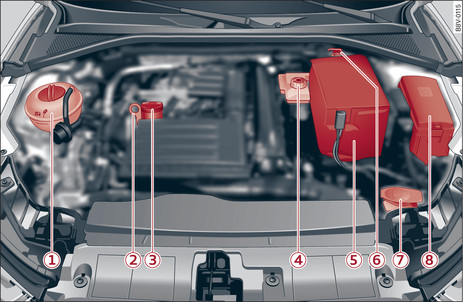

- Fig. 308 Typical locations of fluid containers, engine oil dipstick and engine oil filler cap
| -1- |
Coolant expansion tank (
) link►
|
| -2- |
Engine oil dipstick link►
|
| -3- |
Engine oil filler cap (
) link►
|
| -4- |
Brake fluid reservoir (
) link►
|
| -5- |
Vehicle battery (+) beneath a cover link►
, link►
|
| -6- |
Earth point on body (–) link►
, link►
|
| -7- |
Windscreen washer container (
) link►
|
| -8- |
Fuse box link►
|
The positions of the oil dipstick -2- and the engine oil filler cap -3-
Fig. 308►
may be different on some engine versions.
Note
Plug-in hybrid drive
*:
Please note the information for the coolant expansion tank on
link►
and for the vehicle battery (+) on
link►
.
