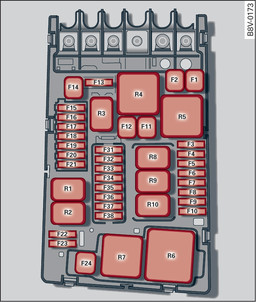

- Fig. 346 Engine compartment: Fuse layout
|
No. |
Electrical equipment
|
|
F1
|
Electronic stabilisation control (ESC)
|
|
F2
|
Electronic stabilisation control (ESC)
|
|
F3
|
Engine control unit
|
|
F4
|
Engine components, engine cooling, supplementary heater relay coils (1+2), secondary air pump relay
|
|
F5
|
Engine components, tank system
|
|
F6
|
Brake light sensor
|
|
F7
|
Engine components, coolant pumps
|
|
F8
|
Lambda probe
|
|
F9
|
Engine components, exhaust flap, control unit for automatic glow period
|
|
F10
|
Fuel injectors, fuel control unit
|
|
F11 |
Supplementary heater heating rod 2
|
|
F12
|
Supplementary heater heating rod 3
|
|
F13
|
Automatic gearbox
|
|
F15
|
Horn
|
|
F16
|
Ignition coil, CNG shut-off valve, power and control electronics
|
|
F17
|
Electronic stabilisation control (ESC), engine control unit
|
|
F18
|
Terminal 30 (reference voltage), battery monitoring
|
|
F19
|
Windscreen wipers
|
|
F20 |
Anti-theft alarm system
|
|
F22
|
Terminal 50, diagnostics, engine control unit
|
|
F23
|
Starter
|
|
F24
|
Supplementary heater heating rod 1, brake servo
|
|
F31
|
Vacuum pump, coolant pump
|
|
F33
|
Brake servo
|
|
F34
|
Brake servo
|
|
F35
|
Air conditioner functional relay
|
|
F37
|
Auxiliary heating/div>
|
