Applies to: vehicles with manual release on inside
The boot lid can be released manually from the inside.

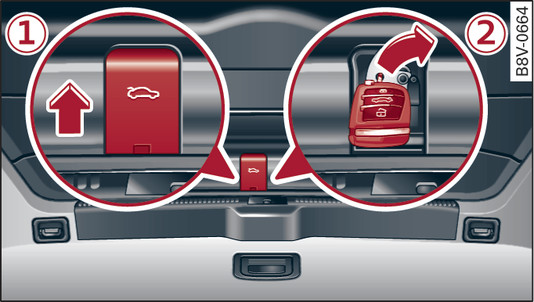

- Fig. 25 Applies to: version 1Detail of inside of boot lid: Access to manual release
- Fig. 26 Applies to: version 2Detail of inside of boot lid: Access to manual release
(Applies to vehicles with exterior manual release mechanism: ) Please note the information on link►.
Applies to: version 1
Fold the rear seat backrest forwards link►.
Use the blade of the ignition key to prise off the cover -1- Fig. 25►.
Insert the key in the opening behind the cover -2- and press the key in the direction of the arrow until the boot is unlocked.
Applies to: version 2
Fold the rear seat backrest forwards link►.
Take the screwdriver out of the vehicle tool kit link►. Use the flat-blade side of the reversible insert.
Use the screwdriver to prise off the cover -3- Fig. 26►.
Insert the key in the opening behind the cover -4- and press the key in the direction of the arrow until the boot is unlocked.
