►Audi A4 ►Infotainment ►Navigation ◀Map
Applies to: vehicles with navigation system

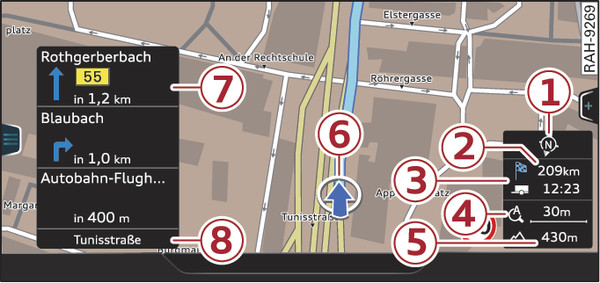

Fig. 224 Example: Standard map with crosshairs switched off
Fig. 224 Example: Standard map with crosshairs switched off

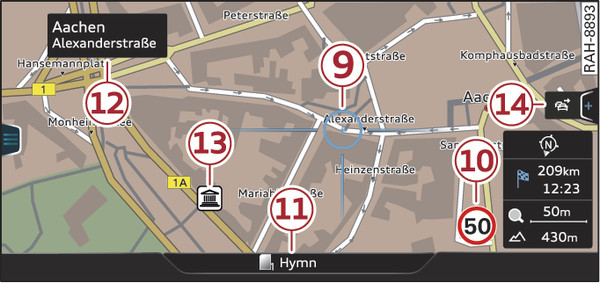

Fig. 225 Example: Standard map with crosshairs switched on
Fig. 225 Example: Standard map with crosshairs switched on
Press the NAV/MAP button repeatedly until the map is displayed Fig. 224►.
Zooming in/out on map
  • Turn the rotary pushbutton clockwise or anti-clockwise. You can also zoom in or out on the map using the MMI touch pad* link► if you have activated the crosshairs. Or: Scroll the left thumbwheel on the multi-function steering wheel* link►.
Switching the crosshairs on/off
  • To switch on the crosshairs: Press the rotary pushbutton while the map is displayed Fig. 224►.
  • To switch off the crosshairs: Press the BACK button.
With the crosshairs switched off Fig. 224►:
-1-Orientation. For more information, please refer to link►.
-2-Distance to destination and estimated time of arrival.
-3-When the trailer mode function is switched on , a corresponding symbol is shown next to the arrival time.
-4-Scale: Turn the rotary pushbutton clockwise/anti-clockwise to zoom in or out. When the Automatic zoom function is switched on , an “A” for “automatic” is shown in the zoom symbol.
-5-Altitude
-6-Location of the vehicle
-7-Route information: Various information is displayed during route guidance (e.g. the upcoming manoeuvre including the calculated distance and road name, or hazard alerts*). Traffic information or special destinations on your current route are also displayed.
-8-Road the vehicle is currently on
With the crosshairs switched on Fig. 225►:
-9-The crosshairs: Move the crosshairs in the desired direction using the MMI touch pad*/rotary pushbutton and select an item on the map as the destination. If the crosshairs are switched off, the road you are currently on will be displayed.
-10-Speed display1): Display of the maximum speed limit on motorways, dual carriageways and other major roads.
-11-Entertainment drawer*: Refer to link►.
-12-Additional information on the position of the crosshairs: If you move the crosshairs onto a point on the map, any existing information on the current position will be displayed. Tap the MMI touch pad. Or: Press the rotary pushbutton. From the destination details, you can start route guidance to the location displayed. Select and confirm Start route guidance.
-13-Map content (special destinations, favourites). If several special destinations are located close to each other, their symbols are stacked on the map.
-14-Better route : If a better route is available for the current route guidance, this will be shown on the map together with the time saved. Further information can be found from link► onwards.
Note
Whether the level of congestion is taken into account when the route is being calculated depends on your traffic avoidance settings link►.
