Audi A4 Service and care Checking and top... Engine compartmen...
The bonnet is released from inside the vehicle.

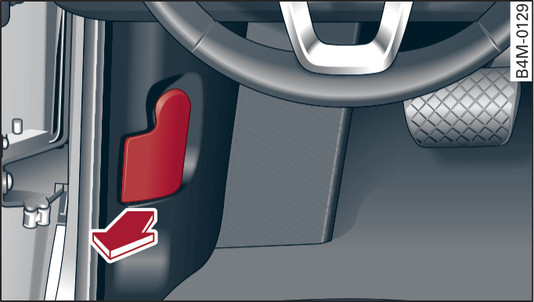

Fig. 294 Footwell on driver s side: Release lever
Fig. 294 Footwell on driver s side: Release lever

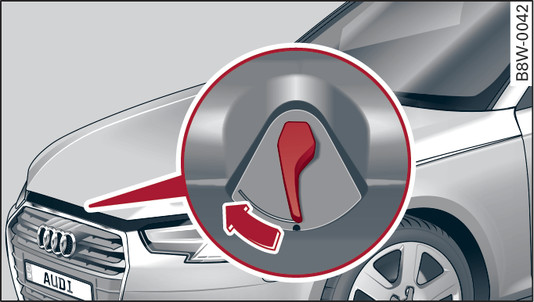

Fig. 295 Unlocked bonnet: Lever
Fig. 295 Unlocked bonnet: Lever
The wiper arms should be resting on the windscreen: make sure they are not in a raised position. Otherwise the paint may get damaged.
Opening the bonnet
With the driver s door open, pull the lever under the dashboard in the direction indicated (arrow) Fig. 294.
Lift the bonnet slightly .
Press the release lever Fig. 295 in the direction indicated (arrow). This will release the arrester hooks.
Open the bonnet.
Closing the bonnet
To close the bonnet, pull it down to overcome the spring pressure.
Then let it drop into the catches; do not press down .
WARNING
  • To avoid the risk of being scalded, never open the bonnet if you see steam or coolant escaping from the engine compartment. Wait until no steam or coolant can be seen before opening the bonnet.
  • For safety reasons the bonnet must always be completely closed when the vehicle is moving. After closing it always check that it is properly secured. It should not be possible to lift the front edges of the bonnet.
  • Should you notice that the bonnet is not safely secured when the vehicle is moving, stop the vehicle immediately and close the bonnet properly, otherwise it could cause an accident.
