 Audi Q5   Controls   Heating and cooling  3-zone deluxe automatic air conditioner
Applies to Audi Q5s: with 3-zone deluxe automatic air conditioner
Dashboard: Location of air outlets

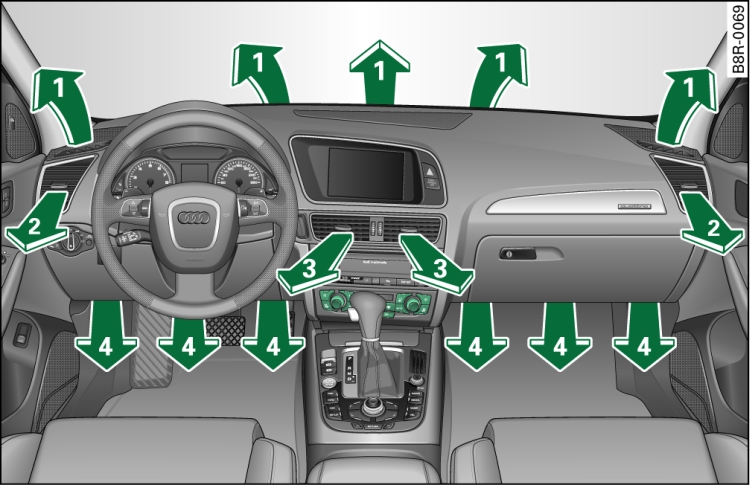

Fig. 1 Dashboard: Location of air outlets
The air distribution setting directs the air to the outlets you select.
Air outlets -2- and -3-
The outlets can be opened and closed by turning the thumbwheels next to them.
Use the handle in the centre of the outlets to adjust the direction of air flow. The direction of air delivery from these outlets can be adjusted horizontally and vertically using the adjuster in the centre of each outlet grille.
The flow of air from the outlets is controlled either automatically or manually, depending on the operating mode selected. Outlets -1- to -4- can provide air which is either heated, unheated, or cooled.
Note
When the air conditioner is operating in the cooling mode, the air is directed mainly to outlets -2- and -3-. To ensure an adequate cooling effect, you should not close these outlets completely.
