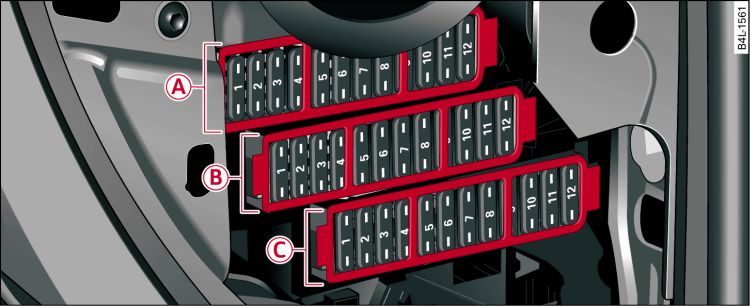

- Fig. 1 Right side of dash panel: Fuse carrier with plastic frames
Fuse list for left-hand drive vehicles
| No. |
Electrical equipment |
amps |
|---|---|---|
| Fuse carrier -A- (black) | ||
| 1 |
Seat heating, rear |
20 |
| 2 |
Telephone, phone pre-installation. card reader |
5 |
| 3 |
Front seat heating/seat ventilation (right side of vehicle) |
30/15 |
| 4 |
Electronic stabilisation program (ESP) |
20 |
| 5 |
Door control unit (right side of vehicle) |
15 |
| 6 |
Power sockets (rear) |
25 |
| 7 |
Lumbar support (front passenger seat) |
10 |
| 8 |
Cigarette lighter, front |
20 |
| 9 |
Power sockets (front) |
25 |
| 10 |
A/C control console |
10 |
| 11 |
Coolbox |
15 |
| 12 |
Smart power module (front passenger) |
15 |
| Fuse carrier -B- (brown) | ||
| 1 |
Headlight electronics (right side of vehicle) |
10 |
| 2 |
Self-levelling suspension |
5 |
| 3 |
Phone pre-installation |
5 |
| 4 |
Lane change assist feature |
5 |
| 5 |
Electronic stabilisation program (ESP) |
5 |
| 6 |
Automatic gearbox |
5/20 |
| 7 |
Electronic stabilisation program (ESP) |
5 |
| 8 |
Selector gate (automatic gearbox) |
5 |
| 9 |
Parking aid |
5 |
| 10 |
Airbag |
5 |
| 11 |
Seat heating, rear |
5 |
| 12 |
Air conditioner |
5 |
| Fuse carrier -C- (red) | ||
| 1 |
Instrument cluster |
10 |
| 2 |
Reversing camera |
5 |
| 3 |
CD player / DVD drive |
5 |
| 4 |
MMI display |
5 |
| 5 |
Automatic gearbox |
15 |
| 6 |
Automatic gearbox/gearbox oil pump |
30 |
| 7 |
Panorama sun roof (segment 1) |
20 |
| 8 |
Panorama sun roof (segment 2) |
20 |
| 9 |
Sun blind for panorama sun roof |
20 |
| 11 |
Electric windows (right side of vehicle) |
35 |
| 12 |
A/C control console (rear) |
10 |
Fuse list for right-hand drive vehicles
| No. |
Electrical equipment |
amps |
|---|---|---|
| Fuse carrier -A- (black) | ||
| 1 |
Seat heating, rear |
20 |
| 2 |
Telephone, phone pre-installation. card reader |
5 |
| 3 |
Front seat heating/seat ventilation (right side of vehicle) |
30/15 |
| 4 |
Electronic stabilisation program (ESP) |
20 |
| 5 |
Door control unit (right side of vehicle) |
15 |
| 6 |
Smart power module (driver) |
30 |
| 7 |
Lumbar support (driver's seat) |
10 |
| 8 |
Smart power module, lights (left side of vehicle) |
25 |
| 9 |
Smart power module, lights (right side of vehicle) |
25 |
| 10 |
Instrument cluster |
10 |
| 11 |
Coolbox |
15 |
| 12 |
Smart power module (front passenger) |
15 |
| Fuse carrier -B- (brown) | ||
| 1 |
Headlight electronics (right side of vehicle) |
10 |
| 2 |
Self-levelling suspension |
5 |
| 3 |
Phone pre-installation |
5 |
| 4 |
Lane change assist feature |
5 |
| 5 |
Electronic stabilisation program (ESP) |
5 |
| 6 |
Automatic gearbox |
5/20 |
| 7 |
Electronic stabilisation program (ESP) |
5 |
| 8 |
Selector gate (automatic gearbox) |
5 |
| 9 |
Parking aid |
5 |
| 10 |
Gateway control unit |
5 |
| 11 |
Terminal 15, interior |
5 |
| 12 |
Headlight range control |
5 |
| Fuse carrier -C- (red) | ||
| 1 |
Instrument cluster |
10 |
| 2 |
Reversing camera |
5 |
| 3 |
CD player / DVD drive |
5 |
| 4 |
MMI display |
5 |
| 5 |
Automatic gearbox |
15 |
| 6 |
Automatic gearbox/gearbox oil pump |
30 |
| 7 |
Panorama sun roof (segment 1) |
20 |
| 8 |
Panorama sun roof (segment 2) |
20 |
| 9 |
Sun blind for panorama sun roof |
20 |
| 10 |
Electronic ignition lock,
Electric steering column adjustment |
30 |
| 11 |
Electric windows (right side of vehicle) |
35 |
| 12 |
Steering column switch module |
10 |
