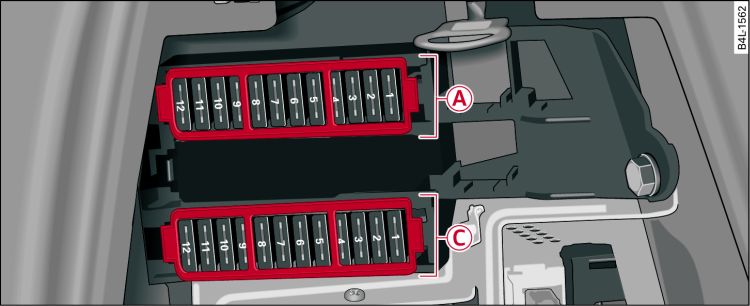

- Fig. 1 Luggage compartment, right side: Fuse carrier with plastic frames
| No. |
Electrical equipment |
amps |
|---|---|---|
| Fuse carrier -A- (black) | ||
| 1 |
Rear Seat Entertainment |
15 |
| 2 |
AdBlue heating |
30 |
| 5 |
Parking aid |
5 |
| 6 |
Smart power module, convenience 2
(right side of vehicle) |
15 |
| 7 |
Smart power module, convenience 2
(left side of vehicle) |
15 |
| 8 |
Auxiliary heating |
5 |
| 9 |
Luggage compartment socket |
20 |
| 10 |
Smart power module, convenience 1
(right side of vehicle) |
20 |
| 11 |
Control unit for convenience electronics |
15 |
| 12 |
Smart power module, convenience 1
(left side of vehicle) |
30 |
| Fuse carrier -C- (red) | ||
| 1 |
Radio |
7.5/30 |
| 2 |
TV tuner |
5 |
| 3 |
Digital Signal Processing (DSP) /
BOSE amplifier |
30 |
| 4 |
Bang & Olufsen amplifier |
30 |
| 5 |
Self-levelling suspension |
15 |
| 6 |
Power pull-down |
20 |
| 7 |
Power-operated boot lid |
30 |
| 8 |
Power-operated boot lid |
30 |
| 9 |
Towing bracket |
15 |
| 10 |
Towing bracket (left side of vehicle) |
20 |
| 11 |
Towing bracket (right side of vehicle) |
20 |
| 12 |
Towing bracket motor |
25 |
