►Audi Q7 ►Troubleshooting ►Mobility ◀Tow-starting / towing aw...

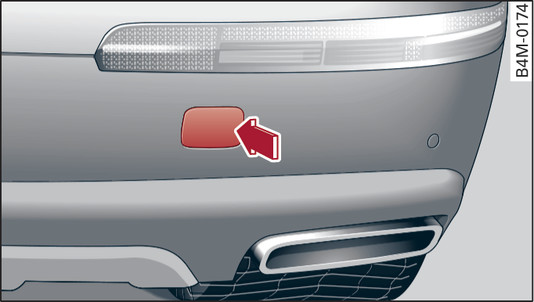

Fig. 338 Rear bumper: Cover cap
Fig. 338 Rear bumper: Cover cap

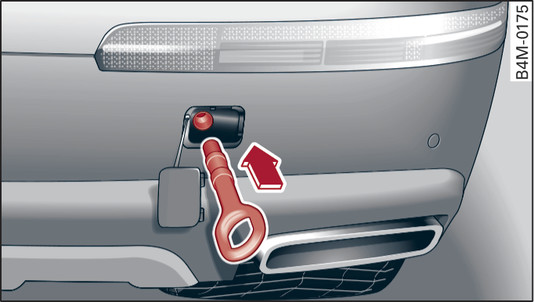

Fig. 339 Rear bumper: Fitting the towline anchorage*
Fig. 339 Rear bumper: Fitting the towline anchorage*
Audi Q7s with towline anchorage
Audi Q7s which do not have a factory-fitted towing bracket* have a connection for a towline anchorage on the right side of the rear bumper.
Take the towline anchorage out of the Audi Q7 s tool kit link►.
Firmly press the top edge of the cap inwards Fig. 338►. The cover cap will be released from the bumper.
Screw the towline anchorage into the screw connection as far as it will go Fig. 339► and tighten it with the box spanner.
Put the towline anchorage back in the tool kit after use.
Audi Q7s with towing bracket*
Swivel out the towing bracket link►.
Attach the tow-bar or the tow-rope to the towing bracket.
Audi Q7s which have a factory-fitted towing bracket* do not have a screw connection at the rear for the towline anchorage.
WARNING
If the towline anchorage is not screwed in as far as the stop, there is a risk of the screw connection shearing off during towing - risk of accident!
CAUTION
To avoid damaging the towing bracket*, only use tow-bars with suitable attachments. If a tow-bar is not available, a tow-rope may be used.
