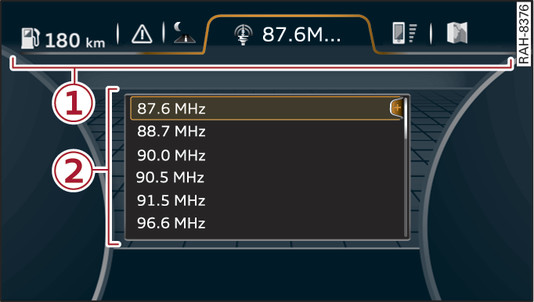

- Fig. 6 View of driver information system

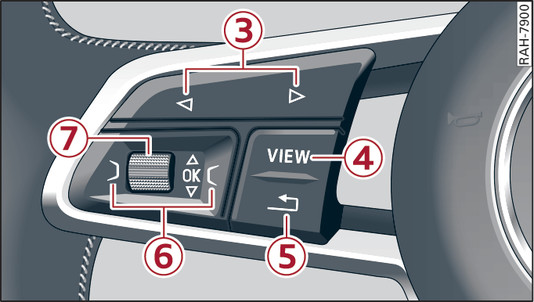

- Fig. 7 Left side of multi-function steering wheel
Important: The ignition must be switched on.
The driver information system shows information -2- in several display tabs -1- Fig. 6►.
The equipment installed on your vehicle determines which of the following tabs are available:
1st tab | Vehicle functions link► |
2nd tab1) | Driver messages |
3rd tab2) | Night vision assist* link► |
4th tab | |
5th tab | Telephone* link► |
6th tab | Navigation* link► Map* |
-3-
button
button- To switch between tabs: Press the button repeatedly until the desired tab is displayed (e.g. Radio).
-4- VIEW button
To change or reduce the view link►.
-5-
button
button
To return to the previous function level.
-6- Control buttons
and
and
To call up/close the selection menu or options menu link►.
- To select a function in a menu/list: Scroll the left thumbwheel to the desired function (e.g. setting a frequency).
- To confirm your selection: Press the left thumbwheel -7- Fig. 7►.
- To zoom in/out of the map: When a map is shown on the display, scroll the left thumbwheel to make the map scale larger or smaller.
