The backrests can be folded down separately* or together.
-

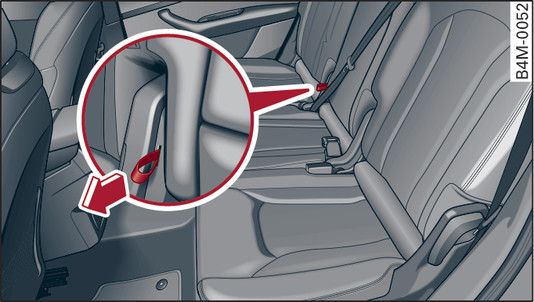

- Fig. 74 Second row of seats: Release ring for centre backrest

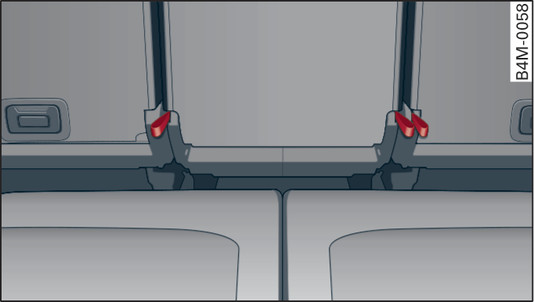

- Fig. 75 Luggage compartment: Folding down second row of seats
Folding down backrest
Pull the lever up Fig. ►. The backrest will move forwards. Or:
Pull the release ring on the rear of the seat Fig. 75►.
Engage the backrest in the lowest position.
Folding up backrest
Folding down centre backrest*
To release the backrest, pull the release ring on the front or rear of the seat Fig. 74► or Fig. 75►.
Fold down the backrest.
Folding up centre backrest*
Fold the backrest up into its upright position and make sure it engages ►.
The centre backrest can be folded down separately*. This load-through feature allows you to transport long items such as skis etc. in the interior of the vehicle.
- Make sure that the rear backrest is securely locked in position so that the seat belt can provide proper protection on the centre rear seat.
- The rear backrest must always be securely latched so that objects stored in the luggage compartment will not fly forward during sudden braking.
- On vehicles with a third row of seats* the centre backrest must be engaged securely in an upright position if there are passengers sitting in the third row of seats* (risk of injury).
