►Audi Q7 ►Setting off ◀e-tron
Applies to: vehicles with plug-in hybrid drive

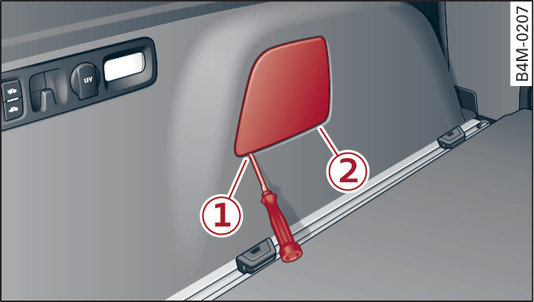

Fig. 124 Luggage compartment, left side: Removing the cover
Fig. 124 Luggage compartment, left side: Removing the cover

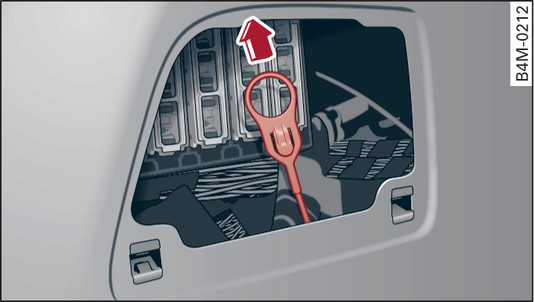

Fig. 125 Luggage compartment, left side: Releasing the cover manually
Fig. 125 Luggage compartment, left side: Releasing the cover manually
Unlock the vehicle.
Prise open the cover at points -1- and -2- using the screwdriver Fig. 124►.
Release the ring Fig. 125► from its holder and carefully pull the ring ►. The cover is then released.
To open the cover, press the right side of the cover Fig. ►.
CAUTION
Stop pulling the ring when you feel resistance (the release mechanism is not audible). Otherwise, you could damage the manual release mechanism.
