►Audi Q7 ►Service and care ►Checking and top... ◀Filling the tank
The tank flap can be released manually if the central locking system should fail to operate.

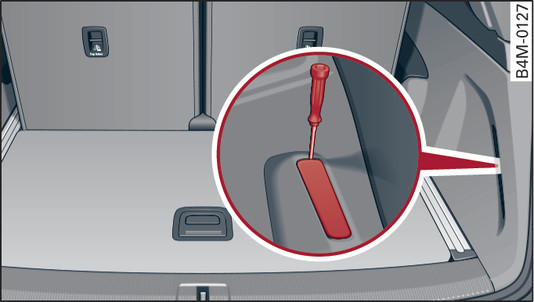

Fig. 319 Luggage compartment: Removing the light cover
Fig. 319 Luggage compartment: Removing the light cover

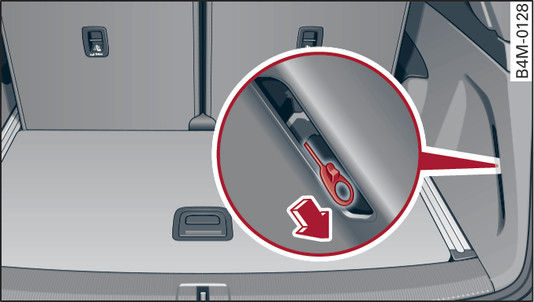

Fig. 320 Luggage compartment: Releasing tank flap manually
Fig. 320 Luggage compartment: Releasing tank flap manually
Plug-in hybrid drive*: Please note the information on link►.
The manual release mechanism is located behind the light cover on the right of the luggage compartment.
Use a screwdriver to remove the light cover Fig. 319►.
Release the ring from the holder and carefully pull the ring Fig. 320► ►. The tank flap is then released.
Press the left side of the tank flap to open it Fig. ►.
CAUTION
Stop pulling the ring when you feel resistance (the release mechanism is not audible). Otherwise, you could damage the manual release mechanism.
