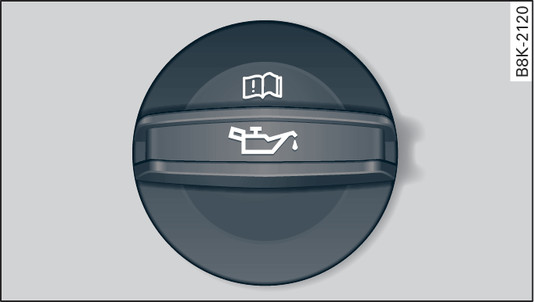

- Fig. 326 Engine compartment: Engine oil filler cap
Please refer to the safety notes ►.
Switch off the engine.
Open the bonnet link►.
Unscrew cap
from oil filler opening Fig. 326►.
from oil filler opening Fig. 326►.
Carefully add 0.5 litres of suitable oil link►.
Screw filler cap back on.
Close the bonnet.
Switch the ignition on again after two minutes and read off the current oil level on the infotainment system link►.
If the oil level is too low, add more engine oil.
WARNING
- Ensure that no oil comes into contact with hot engine components when topping up: this could cause a fire.
- The oil filler cap must be properly closed to prevent oil from squirting onto the hot engine or exhaust system while the engine is running – risk of fire!
- Wash your skin thoroughly if it comes into contact with engine oil.
- Engine oil is poisonous and must be kept out of the reach of children.
- Store the engine oil safely in the original container.
CAUTION
- If the message
Please reduce oil level appears, there is too much oil in the engine – risk of damage to catalytic converter and engine! Do NOT start the engine. Contact a qualified workshop to extract the engine oil if necessary.
- No additives should be used with engine oil. Any damage caused by the use of such additives would not be covered by the factory warranty.
For the sake of the environment
- Never pour oil down drains or into the ground.
- Always observe statutory requirements when disposing of empty oil canisters.
