►Audi R8 Coupé ►Setting off ►Doors and window... ◀Luggage lid
The luggage lid can be released manually from the inside.

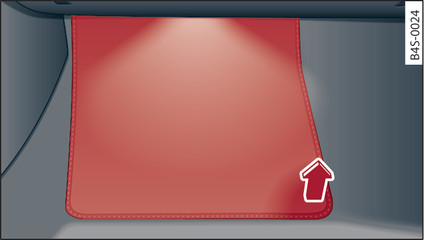

Fig. 28 Passenger s footwell: Cover
Fig. 28 Passenger s footwell: Cover

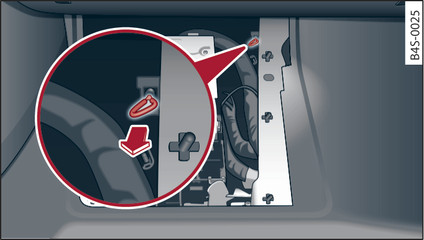

Fig. 29 Passenger s footwell: Manual release
Fig. 29 Passenger s footwell: Manual release
Remove the floor mat.
Remove the cover Fig. 28►.
Pull the red plastic cord in the direction indicated by the arrow Fig. 29►.
