Applies to: vehicles with electrical seat adjustment

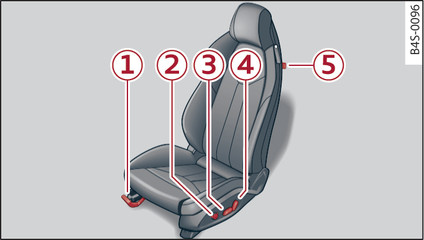

- Fig. 47 Front seat: Adjuster controls (version A)
- Fig. 48 Front seat: Adjuster controls (version B)
Adjusting the seats (version A) Fig. 47►
-1- - Seat forwards/backwards: Lift the lever and move the seat.
-2- - Lumbar support: Press the appropriate side of the button.
-3- - Seat height: Press the button up/down. To adjust the front of the seat cushion, press the front of the button up/down. To adjust the rear of the seat cushion, press the rear of the button up/down.
-4- - Backrest angle: Press the button forwards/backwards.
-5- - Backrest release: Pull the ring and fold the backrest forwards.
Adjusting the seats (version B) Fig. 48►
-1- - Thigh support forwards/backwards: Press the button forwards/backwards.
-2- - Lumbar support: Press the appropriate side of the button.
-3- - Seat side cushions: Inflate/deflate*
-4- - Backrest side cushions: Inflate/deflate*
-5- - Seat height: Press the button up/down. To adjust the front of the seat cushion, press the front of the button up/down. To adjust the rear of the seat cushion, press the rear of the button up/down.
-5- - Seat forwards/backwards: Press the button forwards/backwards.
-6- - Backrest angle: Press the button forwards/backwards.
-7- - Backrest release: Pull the ring and fold the backrest forwards.
WARNING
- Never adjust the front seats when the vehicle is moving - this could lead to an accident.
- The electric front seat adjustment also works when the ignition is off. To avoid accidental injuries, never leave children unattended in the vehicle.
- Be careful when adjusting the seat height. Careless or uncontrolled use of the height adjustment can cause injuries.
- For safety reasons the seat backrests must always be locked while driving - risk of injury!
- Do not drive with the backrests of the front seats reclined too far as otherwise the seat belt and airbag could fail to restrain the wearer properly in an accident, possibly leading to injury.
