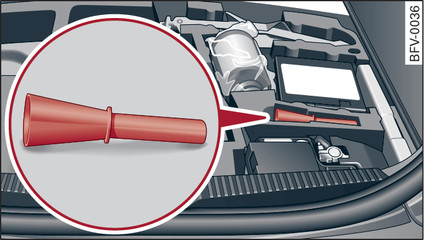

- Fig. 208 Luggage compartment: Funnel
-

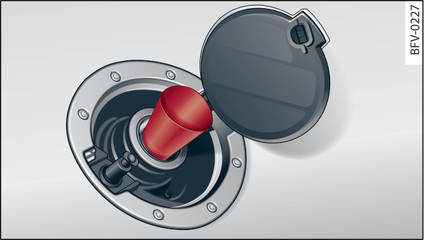

- Fig. 209 Funnel inserted in tank opening
Please refer to the important safety notes ►.
Press the left side of the flap to open it Fig. ►.
Take out the floor panel link►.
Remove the plastic base panels Fig. ►.
Take the funnel out of the luggage compartment.
Insert the funnel into the fuel filler neck as far as the stop Fig. 209►. The funnel should be inserted so far into the fuel filler neck that the ring on the funnel is not visible.
Insert the filler of the spare fuel canister into the funnel and start fuelling.
After fuelling, remove and clean the funnel, then close the fuel tank flap so that you hear it lock into place.
CAUTION
If fuel overflows onto the vehicle, remove it completely straightaway to prevent damage to the vehicle.
