Main components for checking and refilling
-

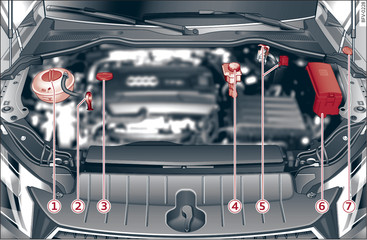

- Fig. 213 Typical locations of fluid containers and engine oil filler cap
Please refer to the safety notes link►.
| -1- | Coolant expansion tank (
 ) link
► |
| -2- | Engine oil dipstick link ► |
| -3- | Engine oil filler cap (
 ) link
► |
| -4- | Brake fluid reservoir (
 ) link
► |
| -5- | Jump-start terminals: under a cover (+); earth point on body (-) link ► |
| -6- | Fuse box link ► |
| -7- | Windscreen washer container (
 ) link► |
The positions of the brake fluid reservoir, the engine oil dipstick and the engine oil filler cap may be different on some engine and country versions.
