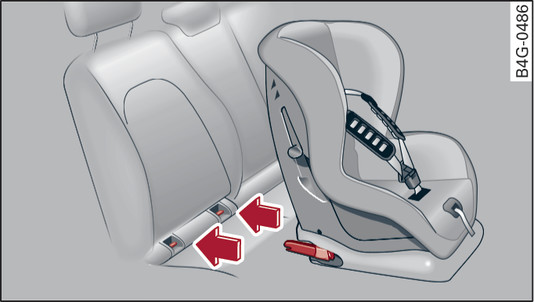

- Fig. 260 Rear seat: Securing child seat with ISOFIX
If you wish to attach an ISOFIX child seat or i-Size child seat to the ISOFIX anchorages in your vehicle, please ensure that it is approved for the seats in your vehicle. The following table link► shows the installation options. The necessary information can be found on the orange label on the child seat.
Remove the covers* from the two ISOFIX anchorages.
Push the mountings on the child seat into the ISOFIX anchorages until they engage audibly Fig. 260►.
Pull on the child seat to check whether both sides have engaged properly.
Child seat | ISOFIX size category | Outer rear seats | Front passenger s seat* |
Category 0: Up to 10 kg | E | IL | IL |
Category 0+: Up to 13 kg | E | IL | IL |
D | |||
C | |||
Category 1: 9 to 18 kg | D | IL | IL |
C | |||
B | IL, IUF | IL, IUF | |
B1 | |||
A | |||
Category 2: 15 to 25 kg | - | IL | IL |
Category 3: 22 to 36 kg | - | IL | IL |
i-Size child seat | - | i-U | X |
- Size category: The size category specifies the weight range for which the seat is approved. On child seats with universal or semi-universal approval, the size category is specified on the ECE approval label. Each child seat carries a label specifying the weight category.
- IL: Seat suitable for the attachment of an ISOFIX child seat with semi-universal approval. Refer to the list of vehicles provided by the child seat manufacturer.
- IUF: Seat suitable for the attachment of a forward-facing ISOFIX child seat with universal approval.
- i-U: Seat suitable for the attachment of an i-Size child seat with universal approval.
- X: Seat not suitable for the attachment of the corresponding child seat.
- Please refer to the important safety notes ►, ► and the instructions provided by the child seat manufacturer.
- NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
- The anchorages in the vehicle are designed only for child seats with ISOFIX. Do not attempt to secure other types of child seat, seat belts or other objects to these anchorages – this could result in serious or possibly fatal injury.
