►Audi A3 - 2016►Controls and displays ◀Instruments and controls

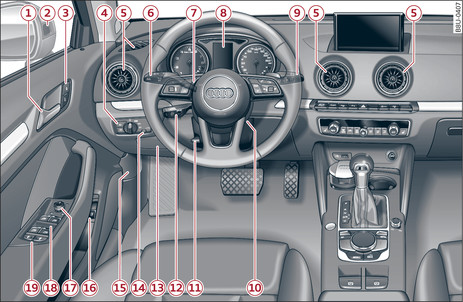

Fig. 1 Front cabin: Left side
Fig. 1 Front cabin: Left side

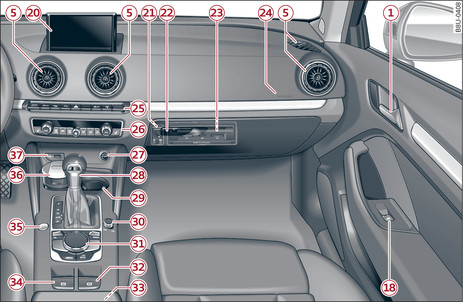

Fig. 2 Front cabin: Right side
Fig. 2 Front cabin: Right side
-1- Door handle
-2- side assist ►
-3- Central locking switch ►
-4- Light switch ►
-5- Air outlets ►
-6-
Control lever for:
-7-
Multi-function steering wheel with:
-8- Instrument cluster ►
-9- Control lever for windscreen wipers and washer ►
-10-
Steering column with optional equipment:
-11- Adjustable steering column ►
-12-
Control lever for:
-13- Knee airbag ►
-14- Instrument lighting ►
-15- Bonnet lock release ►
-16- Switch for tank flap (plug-in hybrid drive) ►
-17- Electric adjuster for exterior mirrors ►
-18- Electric windows ►
-19-
Depending on equipment fitted:
-20- Infotainment display►
-21- Deactivating front passenger s airbag ►
-22- Glove box ►
-23- Drives for CD, DVD and SIM/SD cards ►
-24- Front passenger s airbag ►
-25-
Depending on equipment fitted, buttons for:
-26-
Depending on equipment fitted:
-27-
Depending on equipment fitted:
-28-
Depending on equipment fitted:
-29- Cup holder ►
-30- On/off button for infotainment system ►
-31- Infotainment control console ►
-32-
Depending on equipment fitted, buttons for:
-33-
Centre armrest with storage compartment and the following optional equipment:
-34- Electro-mechanical parking brake ►
-35- START ENGINE STOP button or START STOP button (plug-in hybrid drive) ►
-36-
Centre console with optional equipment:
-37- Audi music interface ►
Note
  • Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
  • (Applies to right-hand drive vehicles: ) The arrangement of switches and controls may be slightly different from the layout shown on link► . However, the symbols used to identify the controls are the same.
