►Audi A3 ►Controls and displays ◀Instruments and controls

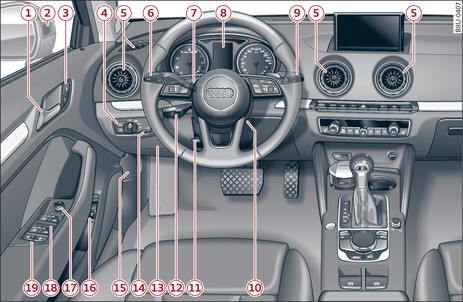

Fig. 1 Front cabin: Left side
Fig. 1 Front cabin: Left side

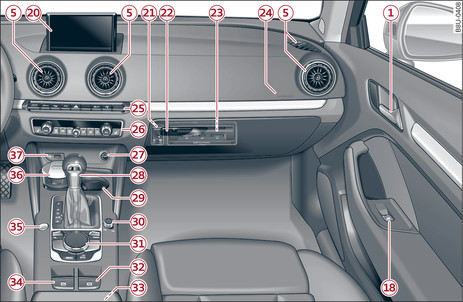

Fig. 2 Front cabin: Right side
Fig. 2 Front cabin: Right side
-1-Door handle
-2-Side assist ►
-3-Central locking switch ►
-4-Light switch ►
-5-Air outlets ►
-6-
Control lever for:
-7-
Multi-function steering wheel with:
-8-Instrument cluster ►
-9-Control lever for windscreen wipers and washer ►
-10-
Steering column with optional equipment:
-11-Adjustable steering column ►
-12-
Control lever for:
-13-Knee airbag ►
-14-Instrument lighting ►
-15-Bonnet lock release ►
-16-Switch for tank flap (plug-in hybrid drive) ►
-17-Electric adjuster for exterior mirrors ►
-18-Electric windows ►
-19-
Depending on equipment fitted:
-20-Infotainment display►
-21-Deactivating front passenger s airbag ►
-22-Glove box ►
-23-Drives for CD, DVD and SIM/SD cards ►
-24-Front passenger s airbag ►
-25-
Depending on equipment fitted, buttons for:
-26-
Depending on equipment fitted:
-27-
Depending on equipment fitted:
-28-
Depending on equipment fitted:
-29-Cup holder ►
-30-On/off button for infotainment system ►
-31-Infotainment control console ►
-32-
Depending on equipment fitted, buttons for:
-33-
Centre armrest with storage compartment and the following optional equipment:
-34-Electro-mechanical parking brake ►
-35-START ENGINE STOP button ►
-36-Centre console with ashtray ►
-37-Audi music interface ►
Note
  • Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
  • (Applies to right-hand drive vehicles: ) The arrangement of switches and controls may be slightly different from the layout shown on link►. However, the symbols used to identify the controls are the same.
