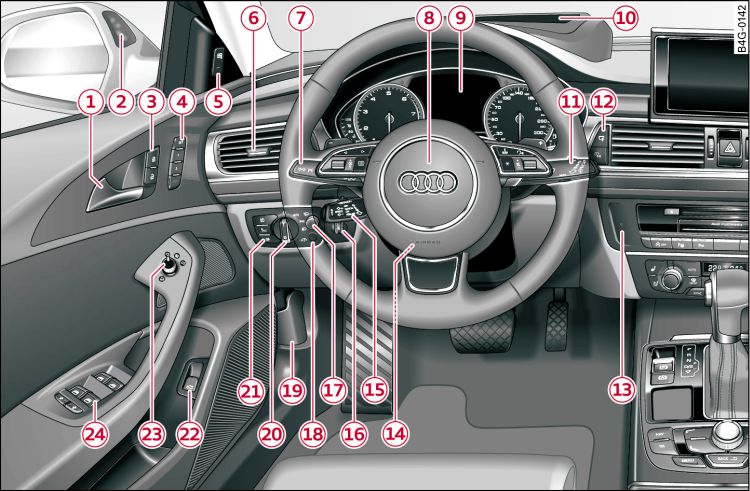

- Fig. 1 Front cabin: Left side

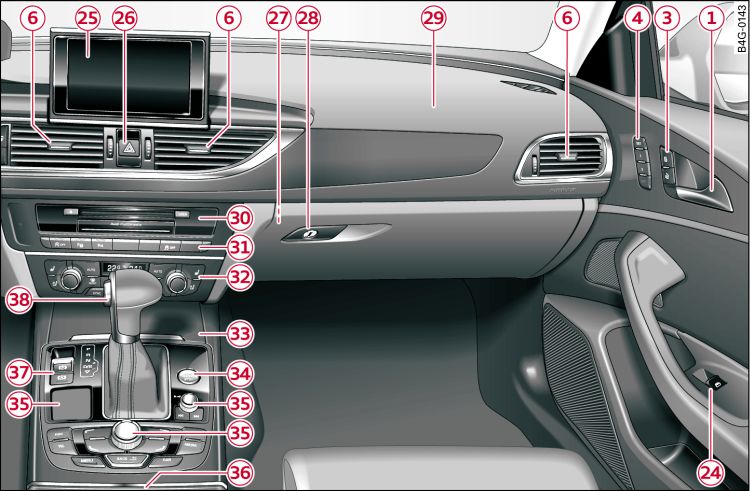

- Fig. 2 Front cabin: Right side
-1- | Door handle |
-2- | Side assist warning lamp |
-3- | Central locking switch |
-4- | Buttons for memory function* |
-5- | Side assist button |
-6- | Air outlets with thumbwheel |
-7- |
Control lever for:
|
-8- |
Multi-function steering wheel with:
|
-9- | Instrument cluster |
-10- | Head-up display* |
-11- | Control lever for windscreen wipers and washer |
-12- |
Controls for:
|
-13- | Starting the engine after a malfunction |
-14- |
Steering wheel adjustment, depending on equipment fitted:
|
-15- |
Control lever for:
|
-16- | Headlight range control* |
-17- | Button for switching head-up display* on/off and adjusting height |
-18- | Instrument lighting |
-19- | Bonnet lock release |
-20- | Light switch |
-21- |
Switches for:
|
-22- | Switch for unlocking the boot lid |
-23- | Electric adjuster for exterior mirrors |
-24- | Electric windows |
-25- | Infotainment display |
-26- | Hazard warning lights |
-27- | Lock for deactivating front passenger's airbag (in glove box)* |
-28- | Glove box |
-29- | Front passenger's airbag |
-30- | Media drives (infotainment system) |
-31- |
Switches/warning lamps for:
|
-32- |
Air conditioner, depending on equipment fitted:
|
-33- | Storage compartment or ashtray* with cigarette lighter*
|
-34- | START ENGINE STOP button |
-35- | Infotainment control console |
-36- | Cup holder, 12 Volt socket*
|
-37- |
Switches for:
|
-38- |
Depending on equipment fitted:
|
Note
- Depending on the equipment fitted in your vehicle the display screen in the instrument cluster is either monochrome or multi-coloured. As the two displays are more or less identical this Owner's Manual uses the multi-coloured displays for illustration purposes.
- Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
- Please refer to the separate operating manual for instructions on using the infotainment system.
- The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on Link. However, the symbols used to identify the controls are the same.
