►Audi Q5►Quick reference◀Getting started

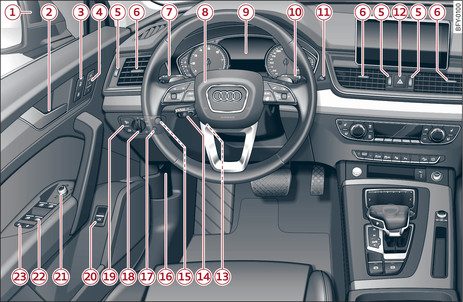

Fig. 1 Front cabin: Left side
Fig. 1 Front cabin: Left side

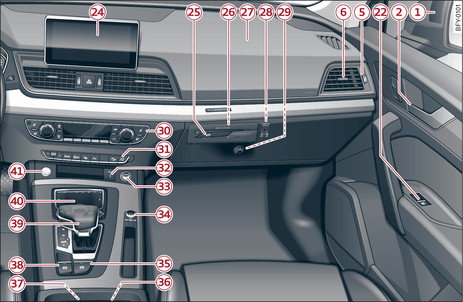

Fig. 2 Front cabin: Right side
Fig. 2 Front cabin: Right side
-1- Side assist warning lamp, exit warning lamp ►
-2- Interior door handle
-3- Central locking switch ►
-4- Recall buttons ►
-5- Thumbwheel for air outlet
-6- Air outlet
-7-
Control lever for:
-8-
Multi-function steering wheel with:
-9- Instrument cluster ►
-10- Control lever for windscreen wipers and washer ►
-11- Resetting trip recorder ►
-12- Hazard warning lights ►
-13-
Steering wheel adjustment, depending on equipment fitted:
-14-
Control lever for:
-15- Button for switching head-up display on/off and adjusting height ►
-16- Bonnet lock release ►
-17- Instrument lighting ►
-18- Light switch ►
-19-
Switches for:
-20- Boot lid switch ►
-21- Electric adjuster for exterior mirrors ►
-22- Electric windows ►
-23- Child lock ►
-24- Infotainment display ►
-25- Lockable glove box ►
-26- Drives for CD, DVD and SIM/SD cards ►
-27- Front passenger s airbag ►
-28- Deactivating front passenger s airbag ►
-29- Rotary control for refrigerated glove box ►
-30- Air conditioner ►
-31-
Depending on equipment fitted, buttons for:
-32- Audi music interface ►
-33-
Depending on equipment fitted:
-34- On/off button for infotainment system ►
-35- Hold assist ►
-36-
Centre armrest with storage compartment and the following optional equipment:
-37- Starting the engine after a malfunction ►
-38- Electro-mechanical parking brake ►
-39-
Depending on equipment fitted:
-40- Infotainment control console ►
-41- START ENGINE STOP button ►
Note
  • Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
  • The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on link►. However, the symbols used to identify the controls are the same.
