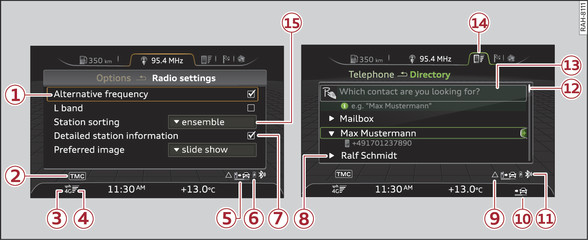

-1-

Selected option

Selected function

-2-

TMC

Reception of TMC traffic information link►

-3-

2G/3G/LTE^*

Network coverage of the active connection link►
2G: GSM network
3G: UMTS network
LTE: LTE network
When a data connection has been established, a symbol indicating the active data connection -1- Fig. ► appears in the status line of the MMI display

-4-

Signal strength bars for data connection^*

Reception strength of the active connection, or
PIN: Enter the SIM PIN code
PUK: Enter the PUK code
SIM: Insert the SIM card link►

-5-

Import procedure

Import/update of contacts in the directory/call list

-6-

Battery

Battery charge level of the mobile phone connected

-7-

Hook

Certain functions can be activated and deactivated by pressing the rotary pushbutton

-8-

Arrow

Information can be called up by pressing the rotary pushbutton

-9-

Roaming

Connected mobile phone/inserted SIM card has left its mobile network

-10-

Copying procedure

Copying audio/video files to the jukebox link►

-11-

Bluetooth^*

Bluetooth device connected link►/link►

-12-

Scrolling bar

Display of long lists
Further possible functions to select

-13-

Entry field

Entries that can be changed using the speller for letters/numbers link►

-14-

Signal strength bars for mobile phone^*

Reception strength of mobile phone network of a connected mobile phone link►

-15-

Selection list

Settings for the selected function that can be called up by pressing the rotary pushbutton
