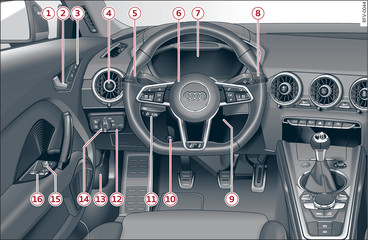

- Fig. 1 Front cabin: Left side
-

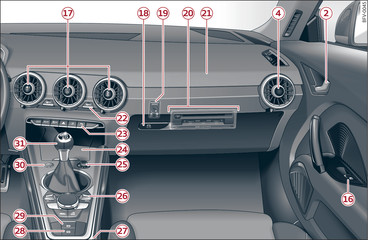

- Fig. 2 Front cabin: Right side
| -1- | Side assist warning lamp ► |
| -2- | Interior door handle |
| -3- | Central locking switch ► |
| -4- | Air outlet with control for seat heating |
| -5- | Control lever for:
|
| -6- | Multi-function steering wheel with:
|
| -7- | Audi virtual cockpit (instrument cluster) ► |
| -8- | Control lever for windscreen wipers and washer ► |
| -9- | Starting the engine after a malfunction ► |
| -10- | Adjustable steering column ► |
| -11- | Control lever for cruise control system ► |
| -12- | Instrument lighting ► |
| -13- | Bonnet lock release ► |
| -14- | Light switch ► |
| -15- | Electric adjuster for exterior mirrors ► |
| -16- | Electric windows ► |
| -17- | Air outlet with control for air conditioner ► |
| -18- | Lockable glove box |
| -19- | Deactivating front passenger s airbag ► |
| -20- | Drives for CD, DVD and SIM/SD cards ► |
| -21- | Front passenger s airbag ► |
| -22- | Switch for rear window heating |
| -23- | Depending on equipment fitted, buttons for:
|
| -24- | Centre console with optional equipment:
|
| -25- | On/off button for infotainment system ► |
| -26- | Infotainment control console ► |
| -27- | Depending on equipment fitted:
|
| -28- | Hold assist ► |
| -29- | Parking brake ► |
| -30- | Depending on equipment fitted:
|
| -31- | Depending on equipment fitted:
|
Note
- Some of the items of equipment listed in this section are only fitted on certain models or are optional extras.
- The arrangement of switches and controls on right-hand drive models* may be slightly different from the layout shown on link►. However, the symbols used to identify the controls are the same.
